AD1002 Thumbnail

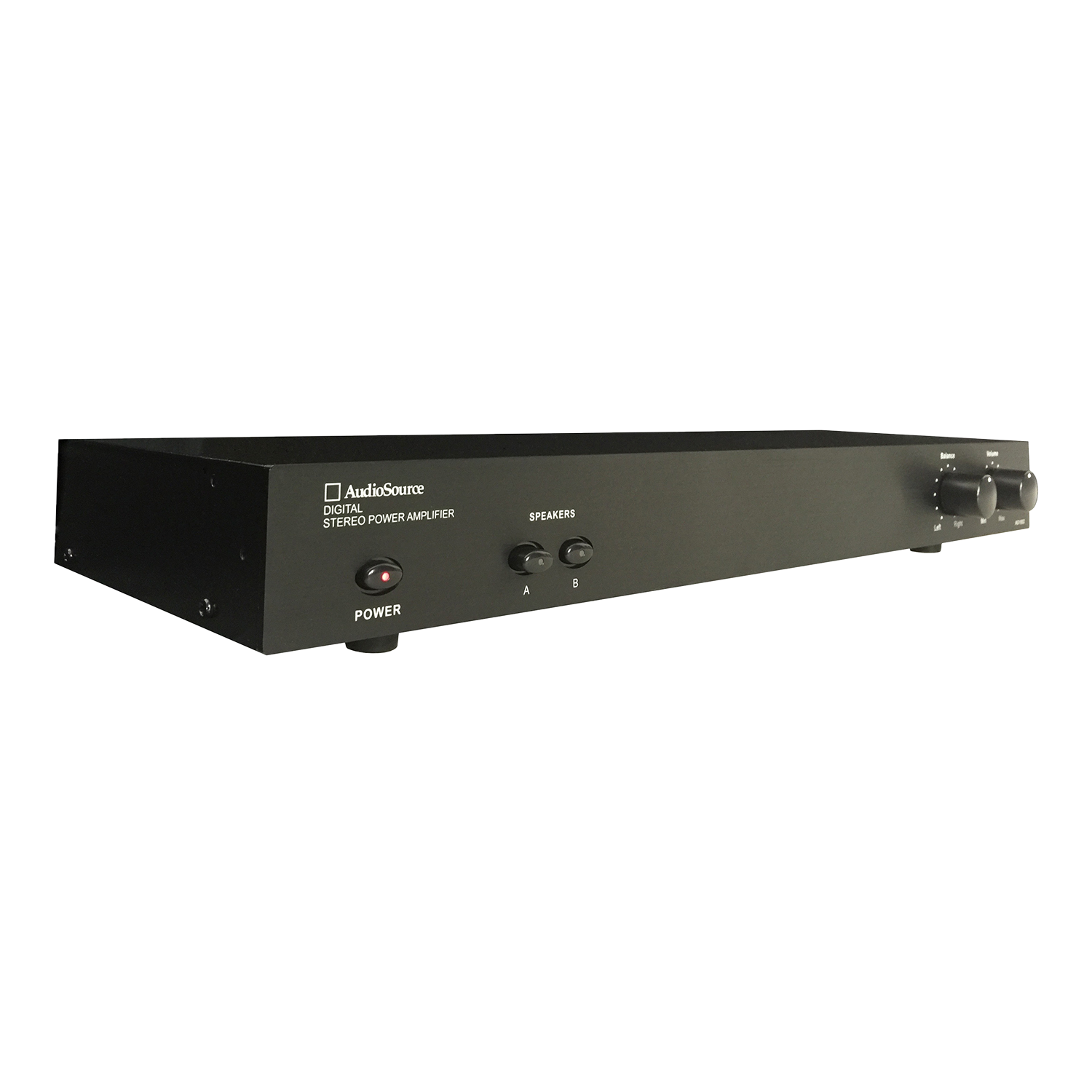

AudioSource AD series digital amplifiers are designed for home and commercial audio distribution systems where high quality sound, flexibility, and reliability are essential. The AD series offers high efficiency and exclusive features that will make their installation and use easy and convenient.

SKU: AD1002 Category:

Product Description


  • MAIN / INTERRUPT priority input switching
  • MAIN auxiliary output
  • Speaker A/B switching

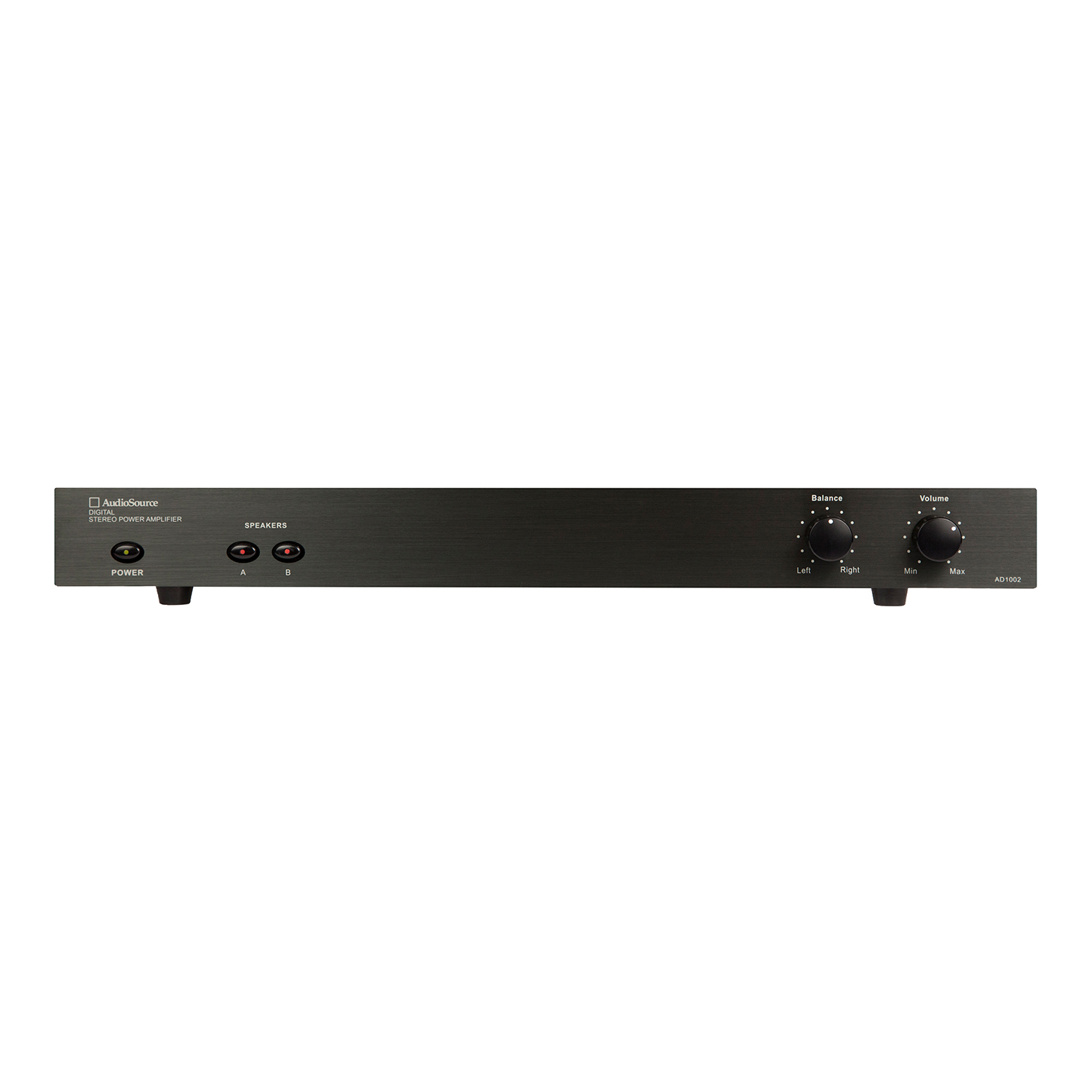

  • Front panel Balance and Volume controls
  • Signal sensing “Power On” and Trigger mode
  • Rear mounted treble and bass controls

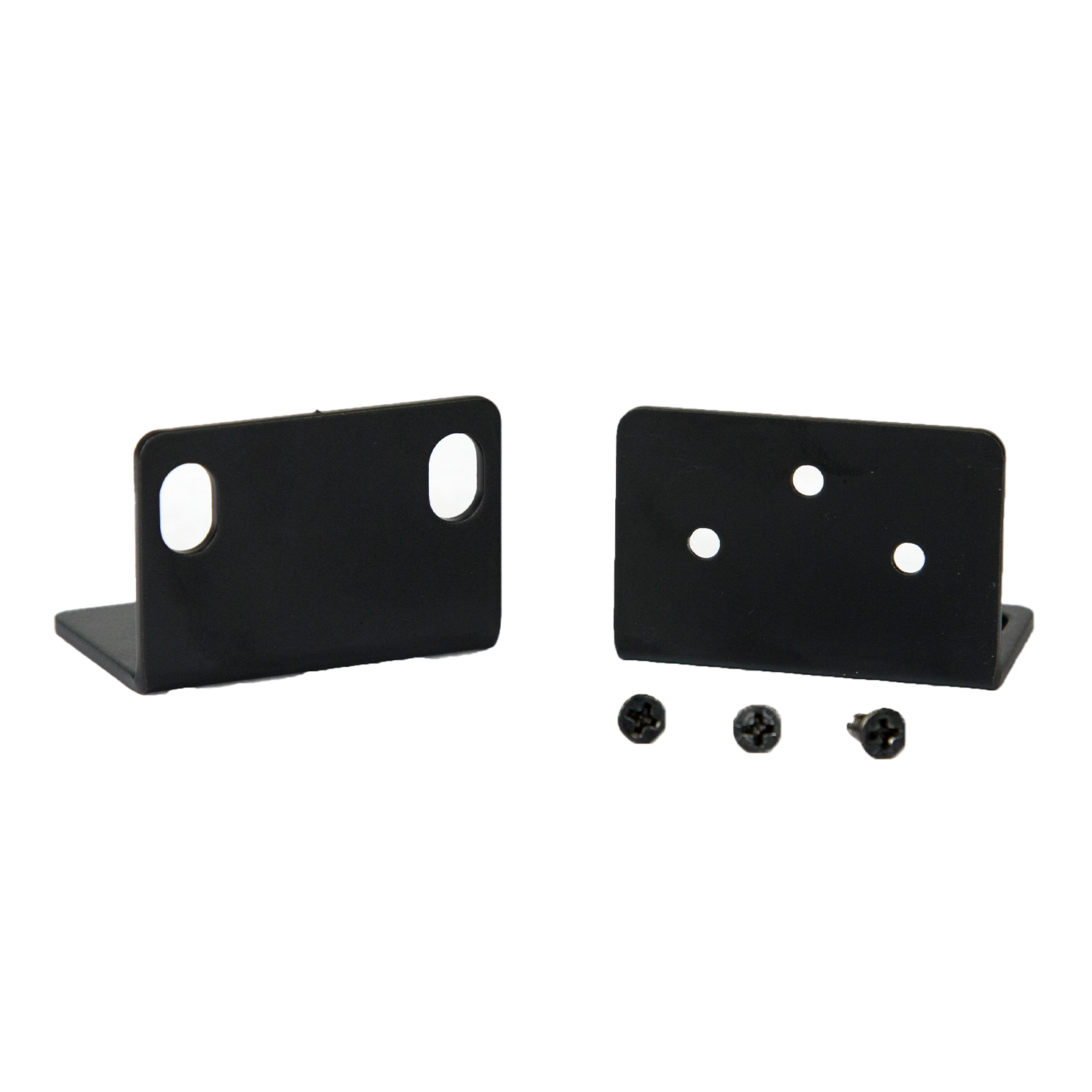

  • Rack mountable (rack ears included)


  • Stereo (8 ohm): 50W per channel, <.2% THD+N
  • Stereo (4 ohm): 75W per channel, <.2% THD+N
  • Bridged Mono (8 ohm): 160W, 1kHz, <.2% THD+N
  • Frequency Response: 20Hz~20kHz
  • Signal to Noise Ratio: 100dB below 50W output into 8 ohms w/20kHz Lowpass filter
  • Channel Separation: 60dB @ 1kHz, referred to 50W output into 8 ohms
  • Input Sensitivity: 700mV input for rated 50W output into 8 ohms
  • Bass/Treble Control: +/- 12dB @ 100Hz and 10kHz
  • AC Power Consumption: 200W maximum
  • Net Weight: 4.7lbs / 2.2kgs
  • Gross Weight: 5.6lbs / 2.5kgs
  • Height: 2.15″ (including feet)
  • Width: 16.9″
  • Depth: 7.65″
